Isotel Precision DC/AC Current Sense

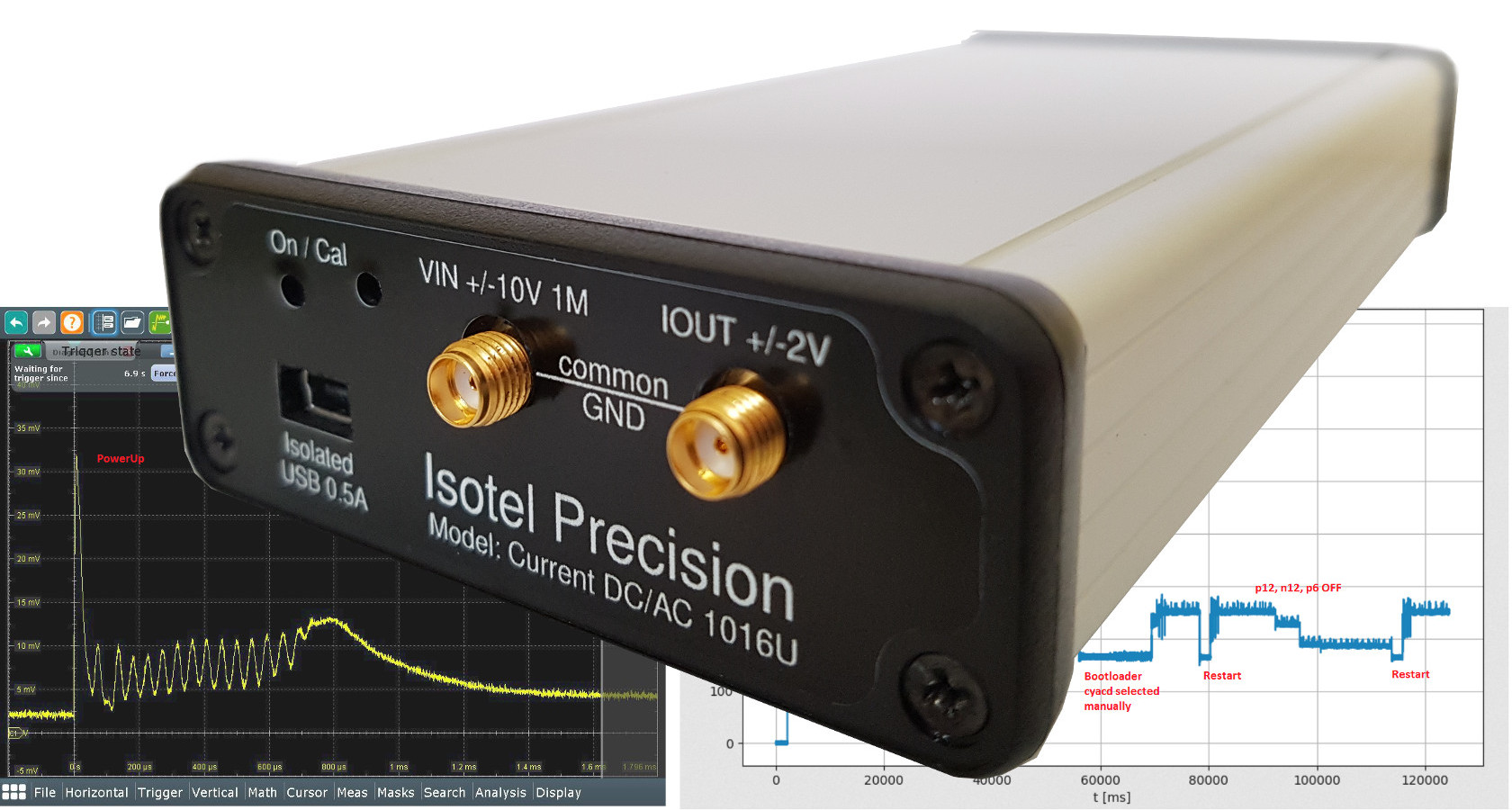

A High Performance DC and AC Current Transducer with Analog Output and Measurement Device with integrated Digital USB Data Acquisition is an ideal equipment for development of systems which require high current dynamic range and long-term testing.

Current Measurements with Confidence

Applications

  • Test and Measurement of USB 3.0, 3.1, 2G, 3G, 4G, and 5G Products

  • Measurement of Solar Panels, Inverters and Other Energy Harvesting Devices

  • Development of Lion/LiPo Battery Controllers and Chargers

  • Performance Measurement of Switching Power Supplies

  • Coulomb Counter (Battery Fuel Gauge)

  • Power Measurements with Auxiliary Voltage or Trigger Input

Features

  • Analog DC Accuracy <0.1%, Linearity <100 ppm, Bandwidth 2 MHz

  • Data Acquisition Current DC Accuracy 0.1%, 16-bit at 50 kSa/s (alias free)

  • Offset Calibration can be performed at any primary current

  • Primary Current Fuse simplifies direct connections of Batteries

  • Auxilary DAQ Voltage Measurement +/-10 V | 1 MOhm or as Trigger Input

  • Synchronized Data Acquisition of Multiple Units

  • Isolated USB CAT II 125 Vrms

  • Isolated Current Sense Input CAT II 300 Vrms

  • Desktop Software Support for Interactive Operation and

  • Cross-Platform Server (Daemon) mode for Unattended 24/7 Tests

Models

Model

Rated Range

Max

Offset

Noise

Price

IP1002U

2 A

2.5 A

<0.5 mA

~0.1 mArms

quote

IP1016U

16 A

25 A

<6 mA

~1 mArms

quote

IP1040U

40 A

55 A

tbd

tbd

in-devel

IP1100U

100 A

120 A

tbd

tbd

in-devel
